PCI EXPRESS Bus Extenders .... Bus Isolation, Regular, Tall, Right Angle and Wearout extenders ....

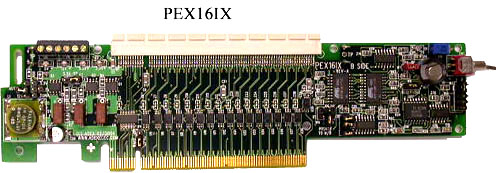

Picture of PEX16IXPEX16IX is a PCI Express X16 Bus Isolation Extender that allows the user to test the sixteen channel PCI Express add-on boards quickly, without having to power the system down each time. It is especially designed to save valuable labor and time in the production environment. It is also a great tool for engineers, during product development, where changes and testing are often required. It also serves to protect the motherboard from damage caused by bad board under test. It has many outstanding features such as, local or external power and signal isolation controls, fused power lines with short circuit sensing and etc. It also allows external voltage margin and current measurement. The dimension is 8.4" L x 2.3" H. PEX16IX Specification

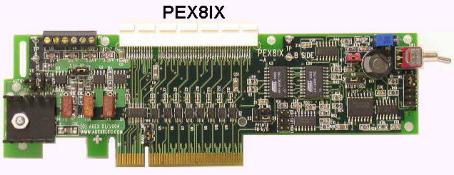

Picture of PEX8IXPEX8IX is a PCI Express X8 Bus Isolation Extender that allows the user to test the eight channel PCI Express add-on boards quickly, without having to power the system down each time. It is especially designed to save valuable labor and time in the production environment. It is also a great tool for engineers, during product development, where changes and testing are often required. It also serves to protect the motherboard from damage caused by bad board under test. It has many outstanding features such as, local or external power and signal isolation controls, fused power lines with short circuit sensing and etc. It also allows external voltage margin and current measurement. The dimension is 7.1" L x 2.3" H. PEX8IX Specification



@

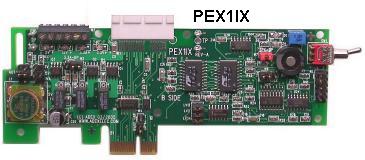

Picture of PEX1IX

PEX1IX is a PCI Express X1 Bus Isolation Extender that allows the user to test the single channel PCI Express add-on boards quickly, without having to power the system down each time. It is especially designed to save valuable labor and time in the production environment. It is also a great tool for engineers during product development, where changes and testing are often required. It also serves to protect the motherboard from damage caused by bad board under test. It has many outstanding features such as, local or external power and signal isolation controls, fused power lines with short circuit sensing and etc. It also allows external voltage margin and current measurement. The dimension is 5.9" L x 2.3" H (not including the PCI bracket).


Picture of PEXP8-EXPEXP8-EX is a regular PCI EXPRESS X8 extender. It features pluggable fuses, power indicating LEDs and external power input connection. By changing the position of the pluggable fuses, it allows power from the motherboard or from an external source to power the PCI EXPRESS I/O board, on top of the extender. Therefore, the voltage margin can be performed through an external power source and current measurement can be performed by removing the fuse and bridged with an ammeter. Precision current measurement can also be performed by adding Current Sensing Resisitor Pads next to the fuses. The PEXP8-EX can be ordered with optional header pins, for signal probing, or with a connector on the solder side (A side). Add -H for the header pin option or the -T for the additional connector option. The dimension of the extender is 4.13" L x 2.37" H (not including the PCI bracket).

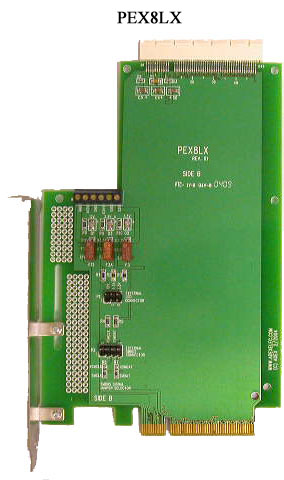

Picture of PEX8LX









PEX8LX is a PCI EXPRESS X8 tall extender. It features pluggable fuses, power indicating LEDs, external LED connection, external SM bus signal connection and external power input connection. By changing the position of the pluggable fuses, it allows power from the motherboard or from an external source to power the PCI EXPRESS I/O board, on top of the extender. Therefore, the voltage margin can be performed through an external power source and current measurement can be performed by removing the fuse and bridged with an ammeter. Precision current measurement can also be performed by adding Current Sensing Resisitor Pads next to the fuses. The dimension of the extender is 4.25" L x 7.1" H (not including the PCI bracket).










Picture of PEXP1-RX1 Picture of PEXP4-RX1 Picture of PEXP8-RX1

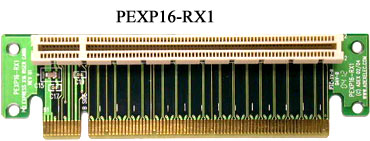

Picture of PEXP16-RX1









PEXP1-RX1, PEXP4-RX1, PEXP8-RX1 and PEXP16-RX1 are the right angle risers for the PCI Express X1, X4, X8 and X16 buses. The connector is soldered on the component side (B side) of the board. When an I/O board is inserted, the component side of the I/O board will face down, towards the motherboard.. All these risers have the same height, at 1.22". The connector center height is 1.05", and the lengths are 1.72", 2.27", 2.94", 4.24" respectively.

@

Picture of PEXP1-RX2 Picture of PEXP4-RX2 Picture of PEXP8-RX2 Picture of PEXP16-RX2




@

PEXP1-RX2, PEXP4-RX2, PEXP8-RX2 and PEXP16-RX2 are the right angle risers for the PCI Express X1, X4, X8 and X16 buses. The connector is soldered on the component side (B side) of the board. When an I/O board is inserted, the component side of the I/O board will face down, towards the motherboard.. All these risers have the same height, at 2.02". They are designed to line up with the middle panel cutout of a 2U chassis. The connector center height is 1.85", and the widths are 1.72", 2.27", 2.94", 4.24" respectively.


@

Picture of PEXP1-RX3 Picture of PEXP4-RX3 Picture of PEXP8-RX3 Picture of PEXP16-RX3




@

PEXP1-RX3, PEXP4-RX3, PEXP8-RX3 and PEXP16-RX3 are the right angle risers for the PCI Express X1, X4, X8 and X16 buses. The connector is soldered on the component side (B side) of the board. When an I/O board is inserted, the component side of the I/O board will face down, towards the motherboard.. All these risers have the same height, at 2.82". They are designed to line up with the top panel cutout of a three cut 2U chassis. The connector center height is 2.65", and the widths are 1.72", 2.27", 2.94", 4.24" respectively.

@

@

P/N WIDTH OVERALL HEIGHT CONN HEIGHT -B
PEXP1-RX1 /RX2 / RX3 1.72" 1.22" / 2.02" / 2.82" 1.05" / 1.85" / 2.65"
PEXP4-RX1 / RX2 / RX3 2.27" 1.22" / 2.02" / 2.82" 1.05" / 1.85" / 2.65"
PEXP8-RX1 / RX2 / RX3 2.94" 1.22" / 2.02" / 2.82" 1.05" / 1.85" / 2.65"
PEXP16-RX1 / RX2 / RX3 4.24" 1.22" / 2.02" / 2.82" 1.05" / 1.85" / 2.65"

Picture of PEX8-RX2A





PEX8-RX2A is a PCI EXPRESS X8 right angle extender. The connector on the riser is facing the A side. The connector center is 1.36" ( 34.65mm) tall. The overall dimension of the riser is 4.14"(105.05mm) L x 1.53"(38.78mm) H


Picture of PEX8-SX-SW





PEX8-SX-SW is a PCI EXPRESS X8 reverse lane extender. The connector is mounted on top of the riser. The transmit and receive differential pairs of lane 0-7 are reverse routed to lane 7-0. The signal direction (TX, RX) and polarity are not reversed. The overall dimension of the riser is 2.98"(75.75mm) L x 1.96"(49.75mm) H


@

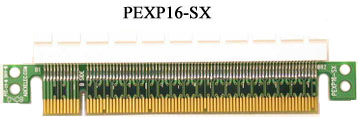

Picture of PEXP1-SX Picture of PEXP4-SX Picture of PEXP8-SX








Picture of PEXP16-SX









PEXP1-SX, PEXP4-SX, PEXP8-SX and PEXP16-SX are wearout extenders, designed to go on top of the PCI Express Bus Isolation and other extenders. These are short and low cost extenders with heavy duty connectors of 2000 - 3000 insertion cycles. Their purpose is to prolong the life of other extenders in heavily used environment. They can also be used to prevent the user's I/O board's gold fingers from damage, when I/O boards are used to test the motherboards repeatedly. These wearout extenders can also be used as bus converters, when higher channel connectors are soldered on top of a lower channel PCBs. All the wearout extenders have the same height, at 1.05", and the lengths are 1.72", 2.27", 2.94", 4.24" respectively.

@

P/N DESCRIPTION WIDTH OVERALL HEIGHT
PEXP1-SX X1 STRAIGHT RISER 1.72" 1.05"
PEXP4-SX X4 STRAIGHT RISER 2.27" 1.05"
PEXP8-SX X8 STRAIGHT RISER 2.94" 1.05"
PEXP16-SX X16 STRAIGHT RISER 4.24" 1.05"

@

Picture of PEXP-SX-TB

@

@

@

@

@

@

@

@

@

PEXP4-SX-4/1, PEXP8-SX-8/4 and PEXP16-SX-16/8 are wearout extenders, with reduced lanes. These wearout extenders are primarily designed to be used as bus converters, with higher channel connectors and lower channel PCB gold fingers. These extenders have heavy duty connectors of 2000 - 3000 insertion cycles. Their purpose is to prolong the life of other connector contacts or goldfingers in heavily used environments. All the wearout extenders have the same height, at 1.05", and the widths are 2.27", 2.94", 4.24" respectively. Other combinations of lane reduction extenders are possible with slight modifications, upon request.

P/N DESCRIPTION WIDTH OVERALL HEIGHT
PEXP4-SX-4/1 X4 TO X1 CONVERTER 2.27" 1.05"
PEXP8-SX-8/4 X8 TO X4 CONVERTER 2.94" 1.05"
PEXP16-SX-16/8 X16 TO X8 CONVERTER 4.24" 1.05"
PEXP16-SX-16/1 X16 TO X1 CONVERTER 4.24" 1.05"

@

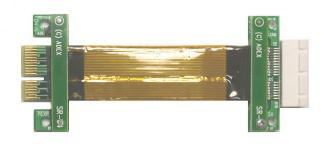

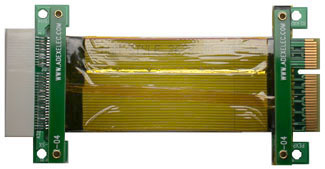

Picture of PE-FLEX1Picture of PE-FLEX4










@

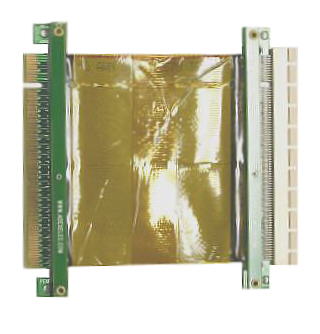

Picture of PE-FLEX8Picture of PE-FLEX16















@

@

@

@

PE-FLEX1, PE-FLEX4, PE-FLEX8 and PE-FLEX16 are flexible extenders for PCI Express X1, X4, X8 and X16 buses. The Minimum cable length is 1". User can can order any cable length up to 15". If not specified, the standard cable length defaults to 3". The overall extender length with a 3" cable is about 4.25".




@

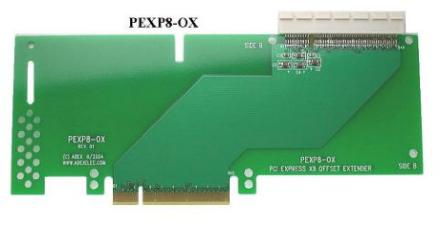

Picture of PEXP8-OXPEXP8-OX is an offset PCI EXPRESS X8 extender. The connector on the top is shifted 3.0" into the chassis. The dimension of the extender is 7.165" L x 3.3" H (not including the PCI bracket).









@

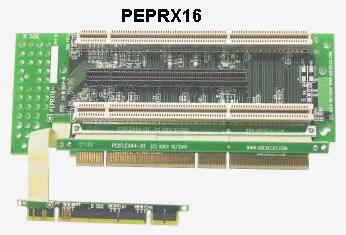

Picture of PEPRX16Picture of EPPRX16 SIDE VIEWPEPRX16 is a PCI/PCI-EXPRESS/PCI, 3 in 1 right angle riser. It plugs into a PCI-Express_X16 slot. The overall dimension of the main board assembly is 2.91"H x 7.10"W. The top PCI-Express_X16 connector connects directly to the gold fingers. The bottom connector is connected to a PCI slot on the motherboard via a wide cable. The top connector has most of its signals connected to the bottom connector, except some dedicated signals that are connected to another PCI slot on the motherboard via a narrow cable. User can order the riser with PE-X1, X4, X8 or X16 and PCI-32 or PCI 64 connectors. All connectors are mounted on the B side of the riser card. This riser is designed for chassis with horizontal cutouts that line up with a PCI-Express_X16 slot on the motherboard. Picture shown above is P/N: PEPRX16-8X8-303-1/3. It is populated with a PCI-Express_X16 connector and two PCI-64 bit 3.3V connectors. The top PCI connector is located at 2.681", the middle PE connector is located at 1.881", and the bottom PCI connector is located at 1.081" height.. All heights are referenced to the bottom of the board. The wide and narrow cables can be ordered in various lengths, depending on the location of the PCI slots on the motherboard. The two PCI slots on the motherboards that are used for the connection must be controlled by the same channel of a PCI bridge controller on the motherboard. For part number suffix definition please refer to faq.html#suffix.




@

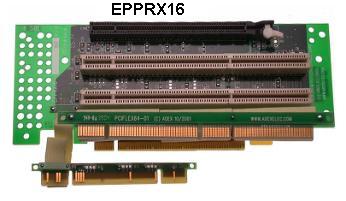

Picture of EPPRX16Picture of EPPRX16P SIDE VIEWEPPRX16 is a PCI-EXPRESS/PCI/PCI, 3 in 1 right angle riser. It plugs into a PCI-Express_X16 slot. The overall dimension of the main board assembly is 2.91"H x 7.10"W. The top PCI-Express_X16 connector connects directly to the gold fingers. The bottom connector is connected to a PCI slot on the motherboard via a wide cable. The middle connector has most of its signals connected to the bottom connector, except some dedicated signals that are connected to another PCI slot on the motherboard via a narrow cable. User can order the riser with PE-X1, X4, X8 or X16 and PCI-32 or PCI 64 connectors. All connectors are mounted on the B side of the riser card. This riser is designed for chassis with horizontal cutouts that line up with a PCI-Express_X16 slot on the motherboard. Picture shown above is P/N: EPPRX16-X88-033-1/3. It is populated with a PCI-Express_X16 connector and two PCI-64 bit 3.3V connectors. The top PE connector is located at 2.681", the middle PCI connector is located at 1.881", and the bottom PCI connector is located at 1.081" height.. All heights are referenced to the bottom of the board. The wide and narrow cables can be ordered in various lengths, depending on the location of the PCI slots on the motherboard. The two PCI slots on the motherboards that are used for the connection must be controlled by the same channel of a PCI bridge controller on the motherboard. For part number suffix definition please refer to faq.html#suffix.




@

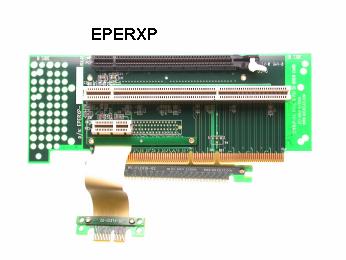

Picture of EPERXPPicture of EPERXP BACK VIEWEPERXP is a PCI-EXPRESS/PCI/PCI-EXPRESS, 3 in 1 right angle riser. It plugs into a PCI slot. The overall dimension of the main board assembly is 2.75"H x 7.09"W. The top PCI-Express connector connects to a PCI-Express slot on the motherboard behind the riser via a wide cable. The middle PCI connector tie directly to the goldfinger. The bottom PCI-Express connector connects to another PCI-Express slot on the motherboard via a narrower cable. User can order the riser with PE-X1, X4, X8 or X16 and PCI-32 or PCI 64 connectors. All connectors are mounted on the B side of the riser card. This riser is designed for chassis with three horizontal cutouts that line up with a PCI slot on the motherboard. Picture shown above is P/N: EPERXP-X81-030-2/3. It is populated with a PE-X16, a PCI-64 bit 3.3V and a PE-X1 connectors. The top PE connector is located at 2.521", the middle PCI connector is located at 1.721", and the bottom PE connector is located at 0.921" height.. All heights are referenced to the bottom of the board. The wide and narrow cables can be ordered in various lengths, depending on the location of the PCI-Express slots on the motherboard. For part number suffix definition please refer to faq.html#suffix.


Picture of EPERXPPicture of EPPRX16 SIDE VIEWEPPRXP is a PCI-EXPRESS/PCI/PCI, 3 in 1 right angle riser. It plugs into a PCI slot. The overall dimension of the main board assembly is 2.75"H x 7.10"W. The top PCI-Express connector connects to a PCI-Express slot on the motherboard behind the riser via a wide cable. The middle PCI-32 connector tie directly to the goldfinger. The bottom PCI connector (32 or 64) connects to another PCI slot on the motherboard via another wide cable. User can order the riser with PE-X1, X4, X8 or X16 and PCI-32 or PCI 64 connectors. All connectors are mounted on the B side of the riser card. This riser is designed for chassis with three horizontal cutouts that line up with a PCI slot on the motherboard. Picture shown above is P/N: EPPRXP-X44-055-2/1. It is populated with a PE-X16 and two PCI-32 bit 5V connectors. The top PE connector is located at 2.521", the middle PCI connector is located at 1.721", and the bottom PCI connector is located at 0.921" height.. All heights are referenced to the bottom of the board. The wide cables can be ordered in various lengths, depending on the location of the PCI-Express slots on the motherboard. The bottom PCI connector can be connected to a different PCI bus than the PCI slot where the riser plugs in. For part number suffix definition please refer to faq.html#suffix.

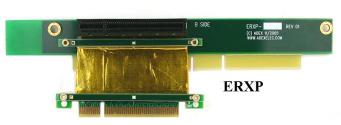

Picture of ERXPPicture of ERXP SIDE VIEWERXP is a single PCI-EXPRESS X8 riser with PCI 64 bit gold finger. It is designed to plug into a PCI slot with a cable extension to a nearby PCI-Express X8 slot.. The overall dimension of the riser board is 1.09"H x 6.95"W. . User can order the riser with a PE-X1, X4 or X8 oconnector. The connector is mounted on the B side of the riser card. This riser is designed to fit into a 1U chassis. The connector center height is 0.926". All height dimensions are referenced to the bottom of the board. The PCI-Express cable can be ordered in various lengths, depending on the location of the PCI-Express slot on the motherboard.

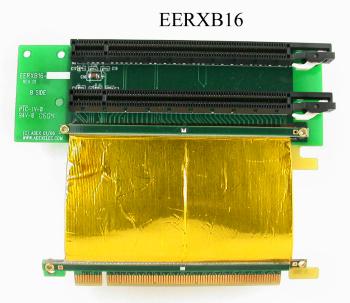

Picture of EERXB16Picture of EERXB16 SIDE VIEWEERXB16 is a dual PCI-EXPRESS X16 riser with PCI Express X16 gold finger. It is designed to plug into a PE-X16 slot with a cable extension to another nearby PCI-Express X16 slot.. The overall dimension of the riser board is 2.16"H x 5.07"W. User can order the riser with any combination of PE-X1, X4, X8 or X16 connectors. All connectors mounted on the B side of the riser card. This riser is designed for 1.5U or 2U chassis. The connector center heights are 1.97" and 1.17". All height dimensions are referenced to the bottom of the board. The PCI-Express cable can be ordered in various lengths, depending on the location of the PCI-Express slot on the motherboard.

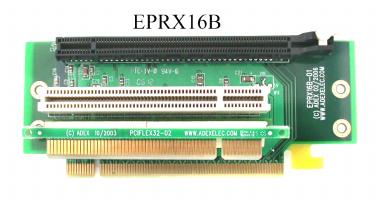

Picture of EERXB16Picture of EERXB16 SIDE VIEWEPRX16B is a PCI-EXPRESS X16 and a PCI-32 riser with PCI Express X16 gold finger. It is designed to plug into a PE-X16 slot with a cable extension to a nearby PCI-32 bit slot.. The overall dimension of the riser board is 2.13"H x 5.15"W. User can order the riser with a PE-X1, X4, X8 or X16 connector. All connectors are mounted on the B side of the riser card. This riser is designed for 1.5U or 2U chassis. The connector center heights are 1.94" and 1.14". All height dimensions are referenced to the bottom of the board. The PCI-32 cable can be ordered in various lengths, depending on the location of the PCI-32 slot on the motherboard.


@

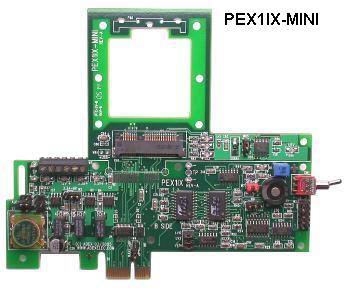

Picture of PEX1IXMINIPEX1IX-MINI is a PCI EXPRESS X1 to PCI Express Mini Bus Isolation adapter. It features power and signal isolation as the PEX1IX board with direct interface to the PCI Express Mini bus. An extended area above the PE-Mini connector can be used to hold the PE-Mini card down. The cutout on the extended area allows the user to access the back side of the PE-Mini card. It combines all the features of the PEX1IX card and the PEX1-Mini card. The dimension of the extender is 5.9" L x 4.75" H (not including the PCI bracket).








Picture of PEX1-MINIPEX1-MINI is a PCI EXPRESS X1 to PCI Express Mini interface adapter. It features power indicating LEDs, LAN activity LEDs and external power input connections. By changing the position of the power jumpers, it allows powers from the motherboard or external sources to power the PCI EXPRESS Mini card. Therefore, voltage margins can be performed through external power sources and current measurements can be performed by removing the jumpers and bridged the pins with an ammeter. Precision current measurement can also be performed by replacing the zero ohm resistors with Current Sensing Resistors. The dimension of the extender is 2.95" L x 2.13" H (not including the PCI bracket).

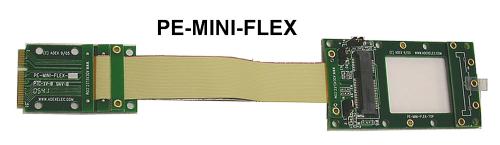

Picture of PEX1-MINIPE-MINI -FLEX is a PCI Express Mini flexible extender. It features external power input connections. By removing the power jumpers, it allows powers from external sources to power the PCI EXPRESS Mini card. Therefore, voltage margins can be performed through external power sources. Current measurements can be performed by removing the zero ohm resistors on the power rails and bridged the pads with an ammeter. Precision current measurement can also be performed by replacing the zero ohm resistors with optional Current Sensing Resistors. This assembly consists of three parts, a bottom pieces that plug into a PE-Mini connector, a set of flexible cables and a top piece with a PE-Mini connector.

@

@

@
