| Bus Isolation and Wearout extenders.... | ||||||||||||||
|
|
||||||||||||||
 |
||||||||||||||

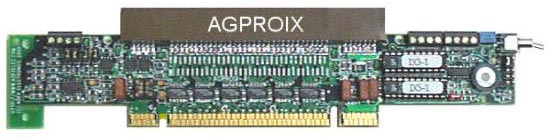

| AGPROIX is a Bus Isolation Extender that allows user to test the AGP-PRO (Accelerated Graphics Port) add-on boards quickly, without having to power the system down each time. | ||||||||||||||
| It is especially designed to save valuable labor and time in the production environment. It is also a great tool for engineers, during product development, where changes and testing are required. In addition, it protects the motherboard from being damaged by bad AGP boards. It has many outstanding features such as, local or external power and signal isolation controls and fused power lines with short circuit sensing, etc. It also allows for voltage margin and current measurement. The extender connector on top, features a universal AGP-PRO connector. The dimension is 8.3" L x 1.95" H. AGPROIX Specification |
||||||||||||||
|
|
||||||||||||||
 |
||||||||||||||
| AGPPRO-01 is a straight AGP-PRO extender designed as a wearout extender to prolong the life of the AGP-PRO connector in a heavily used environment. It can also be used to prevent the I/O board's gold fingers from damage, when I/O boards are used to test the motherboards repeatedly. The extender connector on top, features a universal AGP-PRO connector. The dimension is 4.632" L x 2.327" H. | ||||||||||||||
|
|
||||||||||||||
 |
||||||||||||||
| AGPPRO-11 is a straight AGP-PRO extender of different shape designed as a wearout extender to prolong the life of the AGP-PRO connector in a heavily used environment. It can also be used to prevent the I/O board's gold fingers from damage, when I/O boards are used to test the motherboards repeatedly. The extender connector on top, features a universal AGP-PRO connector. The dimension is 4.994" L x 1.965" H. |
||||||||||||||
|
|
||||||||||||||
| AGP-PROTX-1 is a right angle AGP-PRO extender designed for the 1U/2U chassis. The connector is mounted on the B-side of the extender. The extender connector features a universal AGP-PRO connector. The overall dimension is 4.6" L x 1.15" H.. The connector center height is 0.95". | ||||||||||||||
 |
||||||||||||||
|
|
||||||||||||||
|
|
||||||||||||||
|
AGPROSX4 is a very short AGP-PRO wearout
extender designed to be on top of the AGPROIX extender as a
wearout unit to prolong the life of the AGP-PRO connector in
a heavily used environment. It has mounting holes that
matches that of the AGPROIX extender, so the plastic
mounting ears can hold them together. The extender connector
on top, features a universal AGP-PRO connector. The dimension is 5.076" L x 1.1" H. |
||||||||||||||
 |
||||||||||||||
|
|
||||||||||||||
| AGP2PROX is a short AGP TO AGP-PRO adapter. It allows the AGP-PRO board to be tested in a standard AGP slot. The adapter avoids misalignment of the gold fingers between the two standards. The extender connector on top, features a universal AGP-PRO connector. However, user need to specify 1.5VDD or 3.3VDD gold finger cut on the AGP side. The default is 3.3VDD. The dimension is 4.33" L x 1.1" H. | ||||||||||||||
 |
||||||||||||||
|
|
||||||||||||||
| PRO2AGPX is a short AGP-PRO TO AGP adapter. It allows the AGP board to be tested in a AGP-PRO slot. The adapter avoids misalignment of the gold fingers between the two standards. The extender connector on top, features a AGP connector. User need to specify 1.5VDD or 3.3VDD connector on the AGP side. The default is 3.3VDD. The gold finger features universal AGP-PRO cut. The dimension is 5.076" L x 1.1" H. |
||||||||||||||
|
||||||||||||||
 |
||||||||||||||

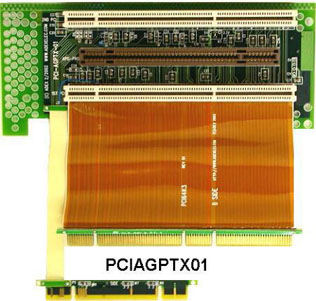

| PCIAGPTX01 is a PCI/AGP-PRO/PCI, 3 in 1 right
angle riser. The overall dimension of the main board assembly is
2.95"H x 7.00"W. The middle AGP-PRO connector is connected
directly to the AGP-PRO gold fingers. The top connector is connected to the
bottom connector. However, there are some dedicated signals that are borrowed
from a small paddle board which is plugged into an adjacent slot. The bottom
connector is a completely independent connection, coming from a separate paddle
board of another PCI slot on the motherboard. The user can order the riser with
PCI-32 bit or PCI 64 bit connectors and AGP or AGP-PRO connector. All
connectors are mounted on the B side of the riser card. This riser is designed
to plug into an AGP or an AGP-PRO slot on the motherboard. The high performance
kapton cable is 3" long and it supports higher PCI bus speed. Picture
shown below is the PCIAGPTX01 populated with 2 PCI-64 bit 3.3V connectors, and a
AGP-PRO universal connector. The top PCI connector is located at 2.571",
the center AGP connector is located at 1.771", and the bottom PCI
connector is located at 0.971" from the bottom of the board.. |
||||||||||||||
 |
||||||||||||||
|
||||||||||||||
