AGP 32 bit Bus Extenders .... Bus Isolation and Wearout extenders ....

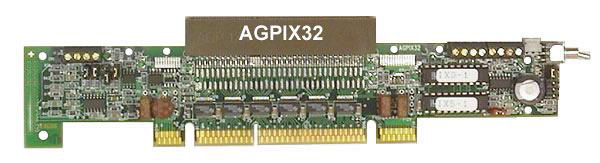

Picture of AGPIX32AGPIX32 is a Bus Isolation Extender that allows user to test the AGP (Accelerated Graphics Port) add-on boards quickly, without having to power the system down each time. It is especially designed to save valuable labor and time in the production environment. It is also a great tool for engineers, during product development, where changes and testing are required. In addition, it protects the motherboard from being damaged by bad AGP boards. It has many outstanding features such as, local or external power and signal isolation controls and fused power lines with short circuit sensing, etc. It also allows for voltage margin and current measurement. The dimension is 8.3" L x 1.9" H.AGPIX32 Specification

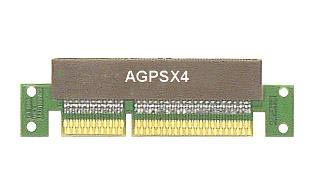

Picture of AGPSX4SAGPSX4 is a wearout extender designed to go on top of the AGPIX32 extender or to be used directly on top of the AGP connector in the motherboard. It is a short and low cost extender designed to prolong the life of the AGP connector in a heavily used environment. It can also be used to prevent the I/O board's gold fingers from damage, when I/O boards are used to test the motherboards repeatedly. The dimension is 3.8" L x 1.1" H.




Picture of AGPSX4-4LAGPSX4-4L is a wearout extender designed to go on top of the other AGP extenders or directly on top of the AGP connector on the motherboard. It is a short and low cost extender designed to prolong the life of the AGP connector in a heavily used environment. It can also be used to prevent the I/O board's gold fingers from damage, when I/O boards are used to test the motherboards repeatedly. It has 4 layers of construction, with impedance control for the 4X and 8X operation. The dimension is 2.9" L x 1.1" H.

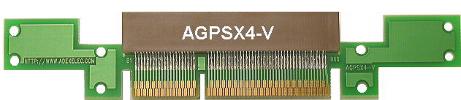

Picture of AGPSX4-VAGPSX4-V is an AGP wearout extender. It can be used on top of the AGP slot in the motherboard or on top of other extenders. It is a short and low cost extender designed to prolong the life of the AGP connector in a heavily used environment. It can also be used to prevent the I/O board's gold fingers from damage, when I/O boards are used to test the motherboards repeatedly. The dimension is 6.17" L x 1.15" H.

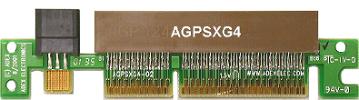

Picture of AGPSXG4AGPSXG4 is an AGP wearout extender. It can be used on top of the AGP slot in the Apple Computer's motherboard. It is a short and low cost extender designed to prolong the life of the AGP connector in a heavily used environment. It can also be used to prevent the I/O board's gold fingers from damage, when I/O boards are used to test the motherboards repeatedly. The dimension is 4.65" L x 1.15" H.

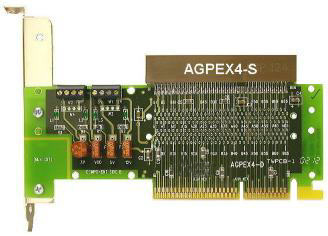

Picture of AGPEX4-SAGPEX4-S is an AGP regular extender. It features pluggable fuses, power indicating LEDs, header pins for logic analyzer hook up and optional right angle AGP connector. By changing the position of the pluggable fuses, it allows power from the motherboard or an external source (via terminal blocks) to power the AGP board on top of the extender. The voltage margin can be performed through an external power source. Current measurement can be performed by removing the fuses and bridging the sockets with an ammeter. A standard AGP connector can be added to the A or B side of the extender to form a right angle configuration. AGPEX4 is available in two form factors: AGPEX4-S for standard ATX chassis and AGPEX4-N for NLX chassis. For the right angle option, add -T suffix to the part number . The dimension is 5.85" L x 2.8" H.

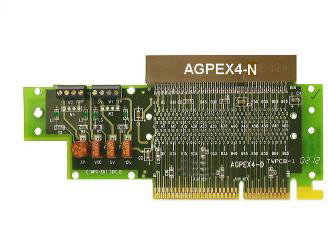

Picture of AGPEX4-N


Picture of AGPRX4-1AGPRX4-1 is an AGP right angle extender. The connector is mounted on the component side (B side) of the extender. When the user's board is inserted into the connector at right angle, it will be parallel to the motherboard with component side face down. User has the option to order the extender in 3.3V, 1.5V or universal configuration. Dimension: 3.74" L x 1.76" H. Connector center height: 1.515".



Picture of AGPRTX4-2AGPRX4-2 is an AGP right angle extender. The connector is mounted on the component side (B side) of the extender. When the user's board is inserted into the connector at right angle, it will be parallel to the motherboard with component side face down. User has the option to order the extender in 3.3V, 1.5V or universal configuration. Dimension: 3.74" L x 2.02" H. Connector center height: 1.771".







Picture of AGPRX4-4AGPRX4-4 is an AGP right angle extender. The connector is mounted on the component side (B side) of the extender. When the user's board is inserted into the connector at right angle, it will be parallel to the motherboard with component side face down. User has the option to order the extender in 3.3V, 1.5V or universal configuration. Dimension: 3.74" L x 2.434" H. Connector center height: 2.184".





Picture of AGPTX4-5AGPTX4-5A is an AGP right angle extender. The connector is mounted on the solder side (A side) of the extender. When the user's board is inserted into the connector, it will be parallel to the motherboard with component side face up. User has the option to order the extender in 3.3V, 1.5V or universal configuration. Dimension -3.54" L x 0.975" H. Connector center height - 0.550".



Picture of AGPTX4-5AGPTX4-5B is an AGP right angle extender. The connector is mounted on the component side (B side) of the extender. When the user's board is inserted into the connector, it will be parallel to the motherboard with component side face down. User has the option to order the extender in 3.3V, 1.5V or universal configuration. Dimension -3.54" L x 0.975" H. Connector center height - 0.786".





Picture of AGPTX4-6BAGPTX4-6B is an AGP right angle extender. The connector is mounted on the component side (B side) of the extender. When the user's board is inserted into the connector, it will be parallel to the motherboard with component side face down. User has the option to order the extender in 3.3V, 1.5V or universal configuration. Dimension -3.75" L x 1.15" H. Connector center height - 0.95". The AGPTX4-6 is available with connector on B side only.





Picture of AGPTX4-7AGPTX4-7A is an AGP right angle extender. The connector is mounted on the solder side (A side) of the extender. When the user's board is inserted into the connector, it will be parallel to the motherboard with component side face up. User has the option to order the extender in 3.3V, 1.5V or universal configuration. Dimension -3.75" L x 2.080" H. Connector center height - 1.59".




Picture of AGPTX4-7AGPTX4-7B is an AGP right angle extender. The connector is mounted on the component side (B side) of the extender. When the user's board is inserted into the connector, it will be parallel to the motherboard with component side face down. User has the option to order the extender in 3.3V, 1.5V or universal configuration. The AGPTX4-7B is designed to replace the AGPTX4-2 extender. Dimension -3.75" L x 2.080" H. Connector center height - 1.83".





Picture of AGPTX4-9


Picture of AGPRX4-8AAGPRX4-8A is an AGP right angle extender. The connector is mounted on the solder side(A side) of the extender. When the user's board is inserted into the connector, it will be parallel to the motherboard with component side face up. User has the option to order the extender in 3.3V, 1.5V or universal configuration. Dimension: 3.74" L x 2.13" H. Connector center height: 1.643".





Picture of AGPRX4-8BAGPRX4-8B is an AGP right angle extender. The connector is mounted on the component side (B side) of the extender. When the user's board is inserted into the connector, it will be parallel to the motherboard with component side face down. User has the option to order the extender in 3.3V, 1.5V or universal configuration. The connector on the AGPTX4-8B is designed to be the same height as the PCITX4-2-B, when inserted into the system motherboard. Dimension: 3.74" L x 2.13" H. Connector center height: 1.88".



Picture of AGPRX4-9AGPRX4-9 is an AGP right angle extender. The connector is mounted on the solder side (A side) of the extender. When the user's board is inserted into the connector, it will be parallel to the motherboard with component side face up. User has the option to order the extender in 3.3V, 1.5V or universal configuration. The connector on the AGPTX4-9 is designed to be the same height as the PCITX4-2-A, when inserted into the system motherboard. Dimension: 3.54" L x 2.13" H. Connector center height: 1.88". Picture shown is for the 1.5V version on both the goldfinger and the connector.



Picture of AGPRX4-11AGPRX4-11 is an AGP right angle extender. The connector is mounted on the component side (B side) of the extender. When the user's board is inserted into the connector, it will be parallel to the motherboard with component side face down. User has the option to order the extender in 3.3V, 1.5V or 2-cut configuration. Dimension: 3.75" L x 1.104" H. Connector center height: 0.904". Picture shown is for the 1.5V version on both the goldfinger and the connector.



AGPRX4 / AGPTX4 Extender Comparison Chart

P/N WIDTH OVERALL HEIGHT CONN HEIGHT -B CONN HEIGHT -A
AGPRX4-1* 3.74" 1.76" 1.515" - -
AGPRX4-2* 3.74" 2.02" 1.771" - -
AGPRX4-4* 3.74" 2.434" 2.184" - -
AGPTX4-5 3.54" 0.975" 0.786" 0.55"
AGPRX4-6* 3.75" 1.15" 0.95" - -
AGPTX4-7* 3.75" 2.08" 1.83" 1.59"
AGPRX4-8* 3.74" 2.13" 1.88" 1.643"
AGPRX4-9* 3.54" 2.13" - - 1.88"
AGPRX4-11* 3.75" 1.104" 0.904" - -

* Designed to AGP 8X specification.

AGP Retainer clip and AGP connectors with built-in retainer are available upon request. AGP-RETAINER PICTURE AGP124-STD-LC PICTURE AGP132-STD-LC PICTURE

(for proper selection of VDDq and A side, B side versions, please see related article in the FAQ section)


AGP-02 - AGP Riser Card, Rev-02. Dimension - H: 2.47" x W: 2.98".

AGP-02 RISER PICTURE


AGP-03- AGP Riser Card, Rev-03. Dimension -H: 2.55" x W: 5.9".

AGP-03 RISER PICTURE


AGP-06- AGP Riser Card, Rev-06, for 1.5V AGP. Dimension -H: 2.47" x W: 2.98".

AGP-06 RISER PICTURE

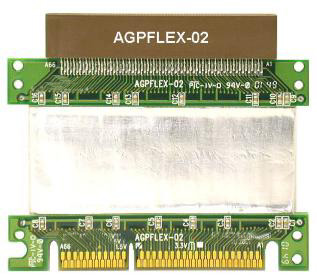

AGPFLEX-02 is an AGP Flexible Extender. It is available in 1.5", 2", 3", 4" and 5" cable length. The connector on top and the gold finger cut at the bottom can be ordered with 1.5V, 3.3V or universal configuration. It is designed for AGP 1X and 2X mode only. It does not work well in the 4X mode. For reliability reasons, we recommend the user not to order the cable length any longer than necessary. Dimension of the top piece is 3.9"W x 1.2"H. The bottom piece is 3.9"W x 0.74"H. With the 1.5" cable, the overall dimension is about 3.9"W x 3.3"H.

AGP-06 RISER PICTURE


Picture of PCIAGPTX01-8U8PCIAGPTX01 is a PCI/AGP-PRO/PCI, 3 in 1 right angle riser. The overall dimension of the main board assembly is 2.95"H x 7.00"W. The middle AGP-PRO connector is connected directly to the AGP-PRO gold fingers. The top connector is connected to the bottom connector. However, there are some dedicated signals that are borrowed from a small paddle board which is plugged into an adjacent slot. The bottom connector is a completely independent connection, coming from a separate paddle board of another PCI slot on the motherboard. The user can order the riser with PCI-32 bit or PCI 64 bit connectors and AGP or AGP-PRO connector. All connectors are mounted on the B side of the riser card. This riser is designed to plug into an AGP or an AGP-PRO slot on the motherboard. The high performance kapton cable is 3" long and it supports higher PCI bus speed. Picture shown here is the PCIAGPTX01 populated with 2 PCI-64 bit 3.3V connectors, and a AGP-PRO universal connector. The top PCI connector is located at 2.571", the center AGP connector is located at 1.771", and the bottom PCI connector is located at 0.971" from the bottom of the board.

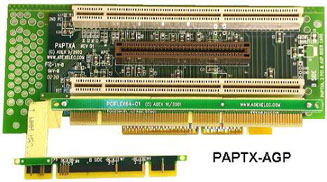

Picture of PAPTX-AGPPicture of PAPTX-AGP SIDE VIEW

PAPTX-AGP is a PCI/AGP/PCI, 3 in 1 right angle riser. It plugs in an AGP slot. The overall dimension of the main board assembly is 2.95"H x 7.00"W. The middle AGP connector connects directly to the AGP gold fingers. The top slot is connected to the bottom slot. Some dedicated signals that are needed for the top slot, are borrowed from a small paddle board that is plugged into a nearby motherboard PCI slot. The bottom connector is a completely independent connection, coming from a separate paddle board of yet another PCI slot on the motherboard. The user can order the riser with PCI-32 bit or PCI 64 bit connectors. All connectors are mounted on the B side of the riser card. This riser is designed for chassis with horizontal cutouts that line up with the AGP slot on the motherboard. Picture shown above is the PAPTX-AGP-8U8-313. It is populated with 2 PCI-64 bit 3.3V connectors, and an AGP universal connector. The gold finger is cut for 1.5V (4X) AGP slot. The top PCI connector is located at 2.571", the center AGP connector is located at 1.771", and the bottom PCI connector is located at 0.971" from the bottom of the board. The wide and narrow cables can be ordered in various lengths.

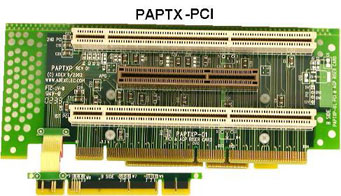

Picture of PAPTX-PCIPicture of PAPTX-PCI SIDE VIEWBack View of PAPTX-PCI

PAPTX-PCI is a PCI/AGP/PCI, 3 in 1 right angle riser. It plugs into a PCI-32 or a PCI-64 slot. The overall dimension of the main board assembly is 2.95"H x 7.00"W. The middle AGP connector connects to the AGP slot on the Motherboard via an AGP riser in the back. The top PCI connector connects to the bottom PCI connector. Some dedicated signals that are needed for the top connector, are borrowed from a small paddle board that is plugged into a nearby motherboard PCI slot. The bottom connector connects directly to the goldfinger. The user can order the riser with PCI-32 bit or PCI 64 bit connectors. All connectors are mounted on the B side of the riser card. This riser is designed for chassis with horizontal cutouts that line up with the 1st PCI slot on the motherboard. Picture shown above is the PAPTX-PCI-818-313. It is populated with 2 PCI-64 bit 3.3V connectors, and a AGP 1.5V(4X) connector. The PCI gold finger is cut for universal, and the AGP goldfinger is cut for 1.5V. The top PCI connector is located at 2.521", the center AGP connector is located at 1.721", and the bottom PCI connector is located at 0.921" from the bottom of the riser. The narrow cable can be ordered in various lengths.
